PET FILMS FOR PRINTED AND WEARABLE ELECTRONICS

WHAT IS ELECROM?

ELECROM
IS MAXIMUM
FLEXIBILITY
FOR PRINTED
ELECTRONICS

It is a line of films, from PET specially treated for the best bonding of conductive inks to stretchable PU for wearable electronics.
It offers a variety of printing opportunities, from screen printing to UV, ensuring the best bonding of the ink with the substrate.
It includes rolls and cut sheets of different sizes, to suit the needs of each individual printers.

WHAT IS ELECROM?

ELECROM
IS MAXIMUM
FLEXIBILITY
FOR PRINTED
ELECTRONICS

It is a line of films, from PET specially treated for the best bonding of conductive inks to stretchable PU for wearable electronics.

It offers a variety of printing opportunities, from screen printing to UV, ensuring the best bonding of the ink with the substrate.

It includes rolls and cut sheets of different sizes, to suit the needs of each individual printers.

FILMS FOR FLEXIBLE CIRCUITS

FILMS FOR FLEXIBLE CIRCUITS

ELECROM is our line of PET films treated for printed electronics applications



FILMS FOR GRAPHIC OVERLAY

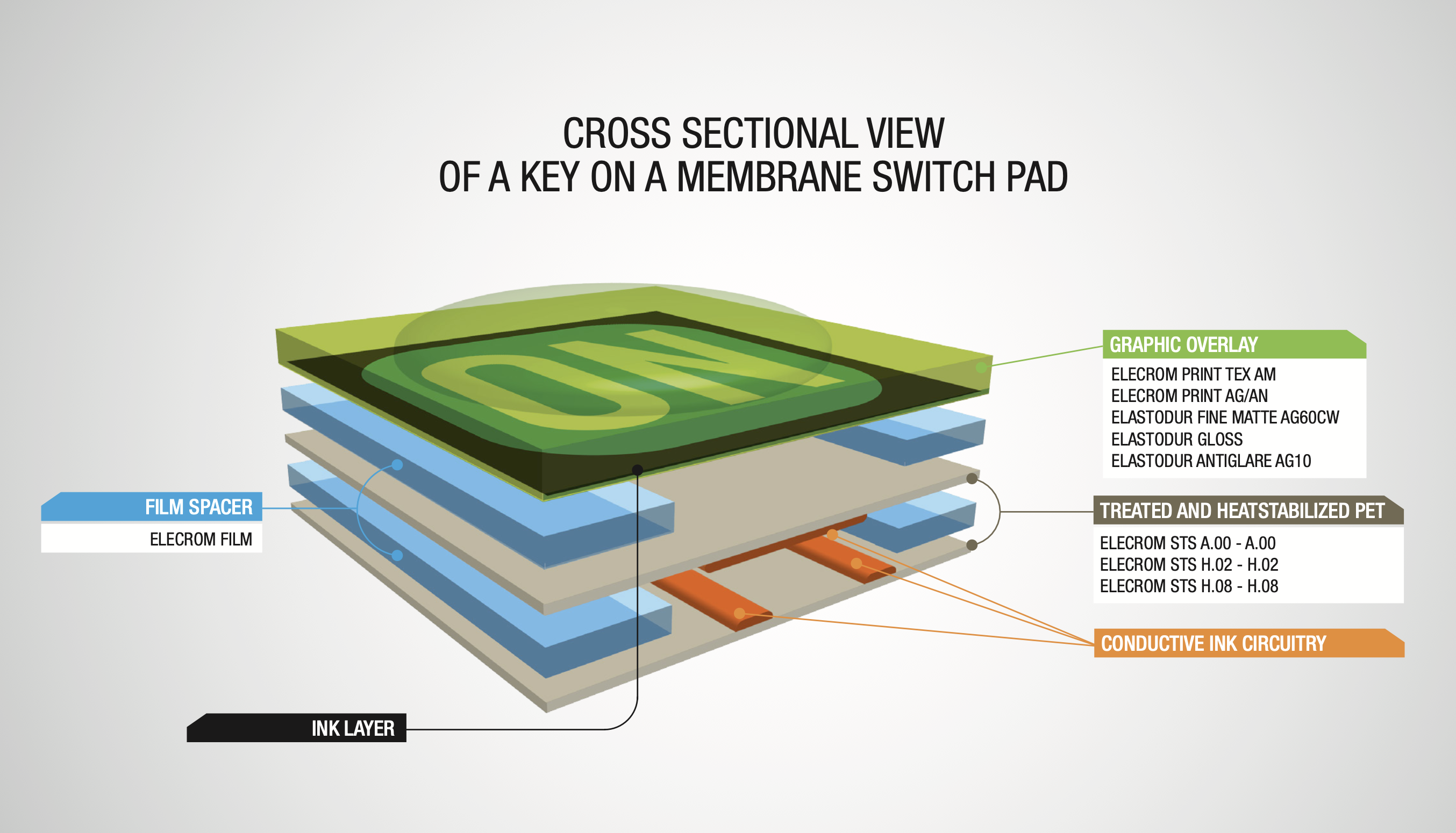

Designed for the preparation of membrane switches, these films have a hard coat treatment on one side and they are treated to ensure the best printing versatility on the opposite side.



FILM FOR CONDUCTIVE INKS
Designed to be printed with conductive inks, they are exposed to an advanced heat stabilization process, and therefore maintain the highest dimensional stability and perfect planarity through the printing process.

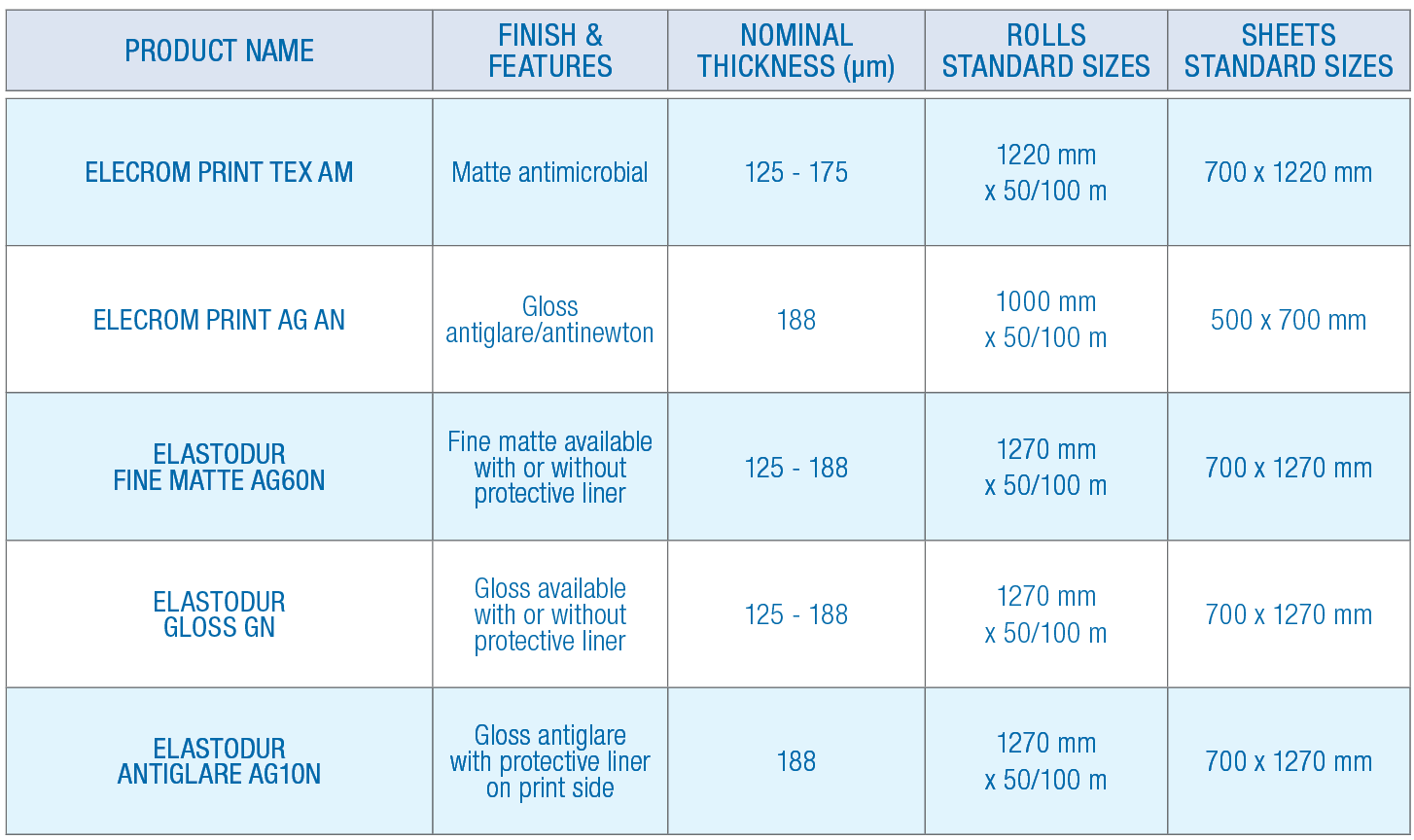

films for graphic overlay
(cover)

PRINT TEX: specially treated on one side for the best bonding with UV inks printed with inkjet technology, they can also be screen printed with solvent and UV inks. The other side features an antiscratch and antimicrobic matte finishing, which grants best bonding with gloss varnishes.

PRINT AG/AN: the printable side is designed specifically for UV inkjet system it features an antiglare/antinewton treatment on the hard coated surface.

ELASTODUR: is a line of specialty films designed by Kimoto and marketed by Policrom. They are treated for screen printing and
UV inkjet inks. The finish on the anti-scratch side is available in three versions: fine matte, gloss and gloss antiglare.

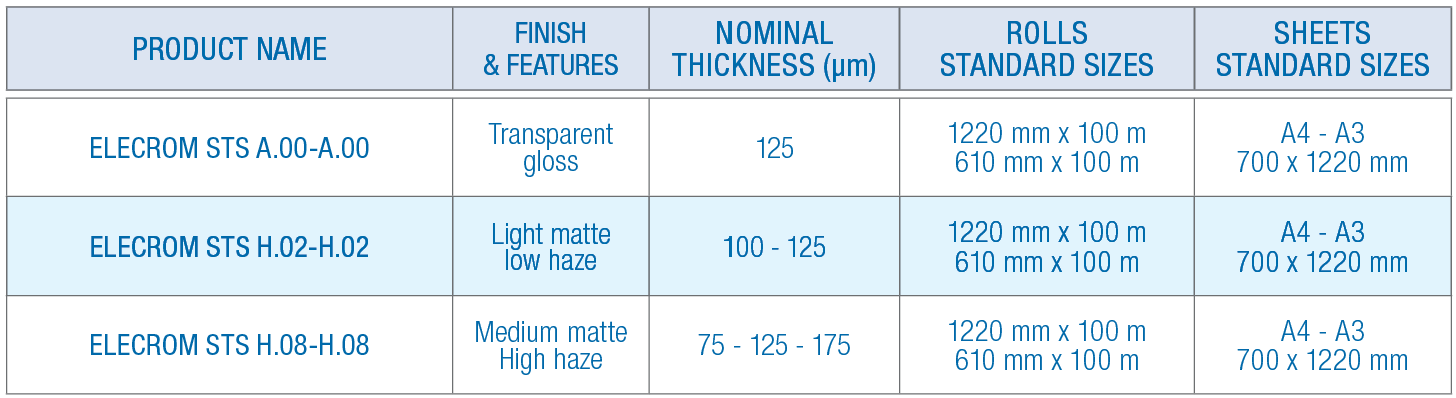

heat stabilized pet films for conductive circuits

STS A.00-A.00: clear treatment for the bonding of inks, resins and adhesives, designed for clear conductive inks such as PEDOT or metallic nano molecules based inks.

STS H.02-H.02: special bonding treatment that increases the surface energy (wettability) ensuring a strong bonding of inks, resins and adhesives, designed for silver (conductive) and carbon (resistive) inks.

STS H.08-H.08: super bonding treatment that increases the surface energy (wettability) ensuring the strongest bonding of the inks, resins and adhesives.

APPLICATIONS

ELECROM
IS MAXIMUM
VERSATILITY
FOR A WIDE RANGE
OF INDUSTRIAL
APPLICATIONS

It offers a few options for membrane switch covers suitable for any application, from home appliances to automotive and aerospace.

It is for flexible circuits: STS films are super thermostabilized and ensure best bonding with all conductive inks.

It stretches out to reach sports, health and even military applications, with PU films specially designed for wearable applications

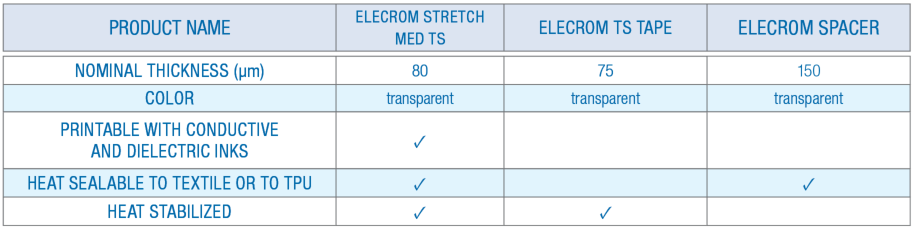

TRANSFER FILMS FOR WEARABLE ELECTRONICS

TRANSFER FILMS FOR WEARABLE ELECTRONICS

Flexible and stretchable

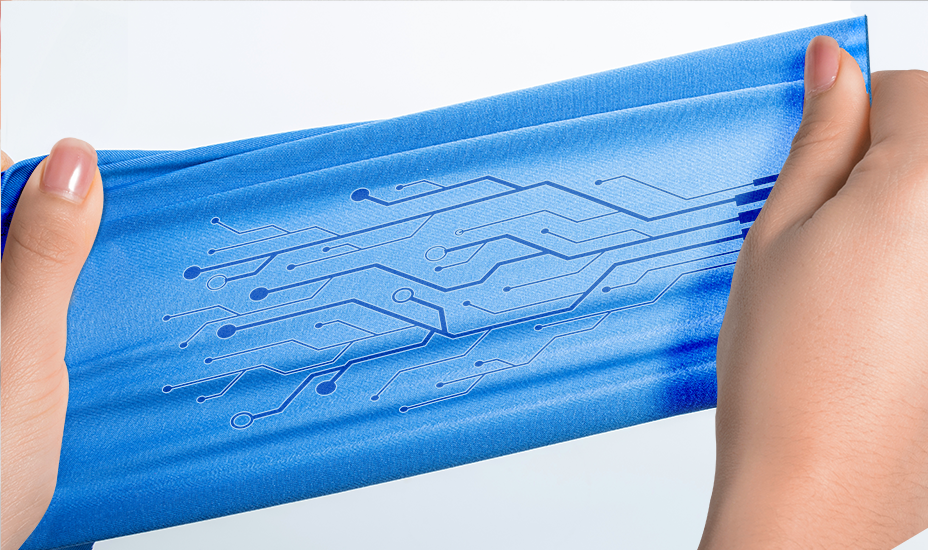

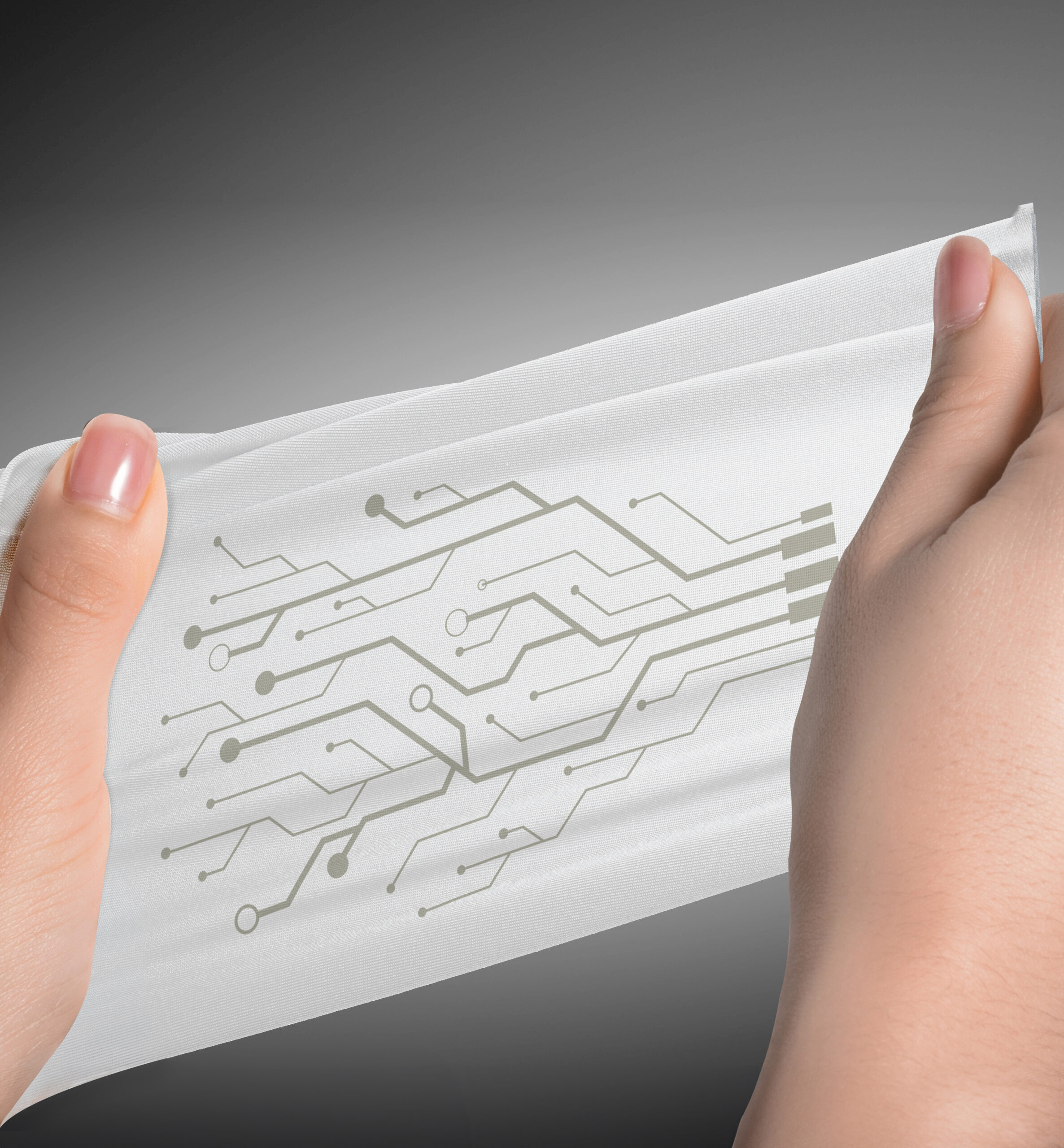

ELECROM films for wearable electronics feature two innovative products, with an exclusive elastic and stretchable functional structure.

Elecrom Stretch TS is designed to ease the printing of circuits, ensure the perfect bonding onto any kind of textile and grant track stability and consistent conductivity,

Elecrom Stretch Encapsulate is designed to seal and protect the printed circuit; it can also be used to print an additional circuit on top of the other, before adding the final protective sealing (using an additional sheet of Elecrom Stretch Encapsulate).

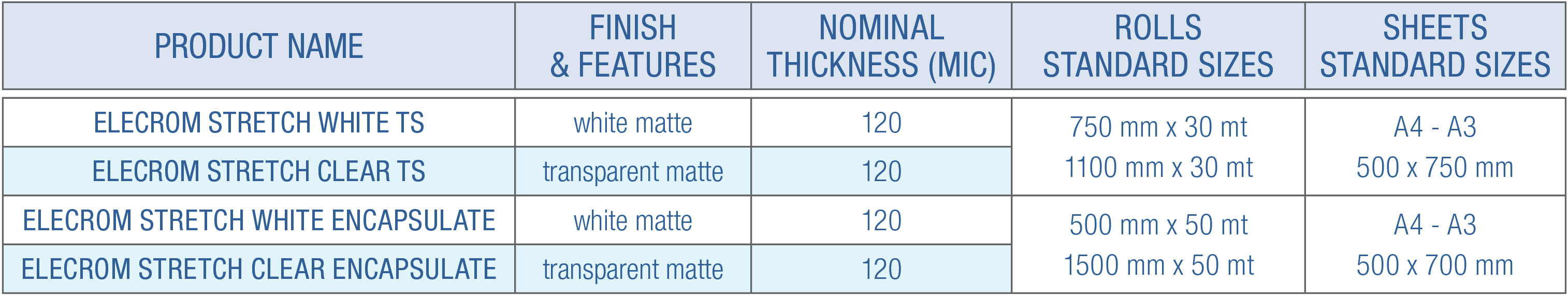

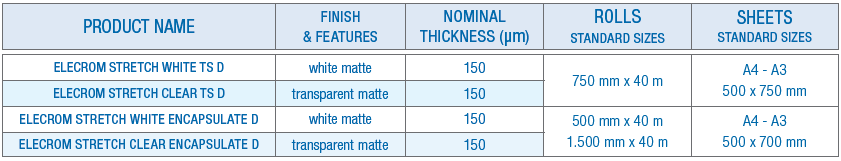

ELECROM STRETCH TS: elastic polyurethane film for printing electronic circuit

ELECROM STRETCH TS is the new high-stretch film for wearable electronics, available both white and transparent, that features unique properties thanks to its exclusive structure:

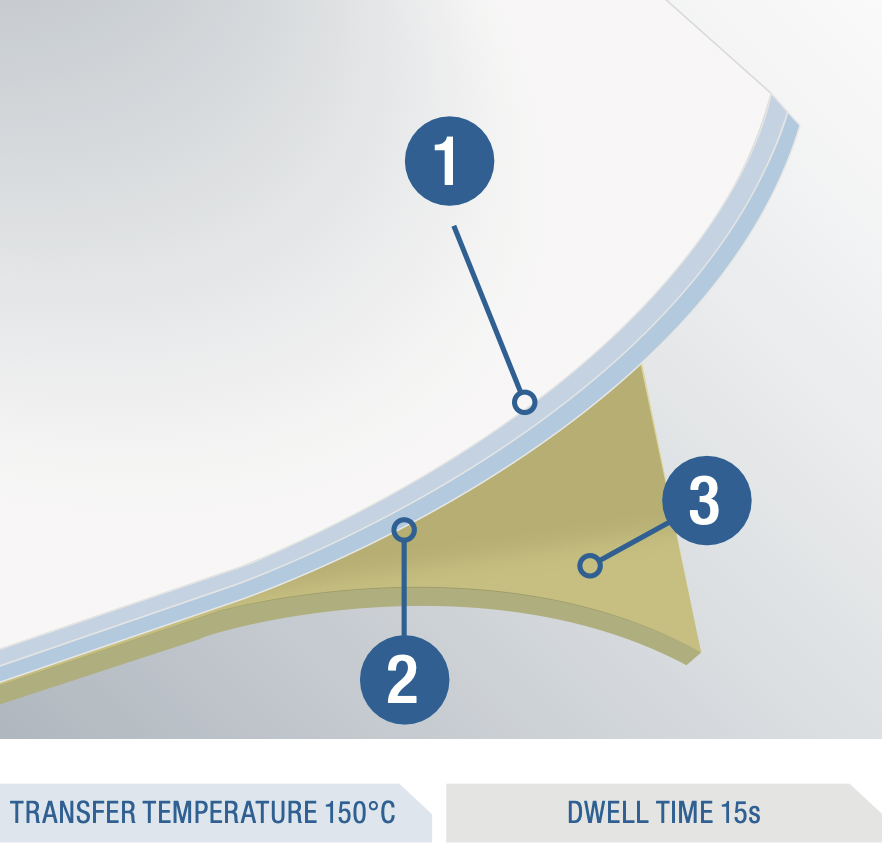

1 THE UPPER (PRINTABLE) SIDE, is designed to facilitate the printing process: the matte surface prevents the film from sticking to the mesh; it is heat resistant well over 150°, ensures high stretching properties and a good consistency of the conductive track.
2 THE LOWER (HEAT SEALABLE) SIDE activates at 150°C to bond with any type of textile
3 THE PROTECTION LINER is made with thermostabilized PET to provide a flat surface during printing and to prevent thermal shrinkage

ELECROM STRETCH ENCAPSULATE: elastic polyurethane film for electronic circuit encapsulation

ELECROM STRETCH ENCAPSULATE is the new high-stretch film for wearable electronics available in both white and transparent versions.
It can be used either for the encapsulation of circuits printed on Elecrom stretch TS or as an additional layer printed with conductive inks
1 THE UPPER (HEAT SEALABLE) SIDE is designed to match the characteristics of Elecrom stretch TS and perfectly laminate to it.
2 THE LOWER (MATTE HEAT RESISTANT) SIDE
• when used for encapsulation, its matte surface provides a soft hand feel to the finished circuit;
• when used for the printing of an additional circuit, it facilitates the printing process: the matte surface prevents the film from sticking to the mesh; it is heat resistant well over 150°, ensures high stretching properties and a good consistency of the conductive track
3 THE PROTECTION LINER is made of silicone paper that facilitates manipulation throughout the process and is removed after the transfer onto the textile.

APPLICATIONS

Flexible,
stretchable
and conductive

It offers a few options for membrane switch covers suitable for any application, from home appliances to automotive and aerospace.

It is for flexible circuits: STS films are super thermostabilized and ensure best bonding with all conductive inks.

It stretches out to reach sports, health and even military applications, with PU films specially designed for wearable applications

ABOUT US

ELECROM
IS A BRAND
BY POLICROM

Serving the printing industry with quality films and materials since 1949. We have both developed proprietary films and selected quality printable films manufactured by our partner KIMOTO.

If you have a special electronics application
that needs a flexible or stretchable film, we
will work and design it with you and for you!

ABOUT US

ELECROM
IS A BRAND
BY POLICROM

Serving the printing industry with quality films and materials since 1949. We have both developed proprietary films and selected quality printable films manufactured by our partner KIMOTO.

If you have a special electronics application that needs a flexible or stretchable film, we will work and design it with you and for you!
